This tutorial builds a complete emissions request one part at a time. By the end, you will have calculated the emissions for moving one metric tonne of cargo from Berlin to London by road.

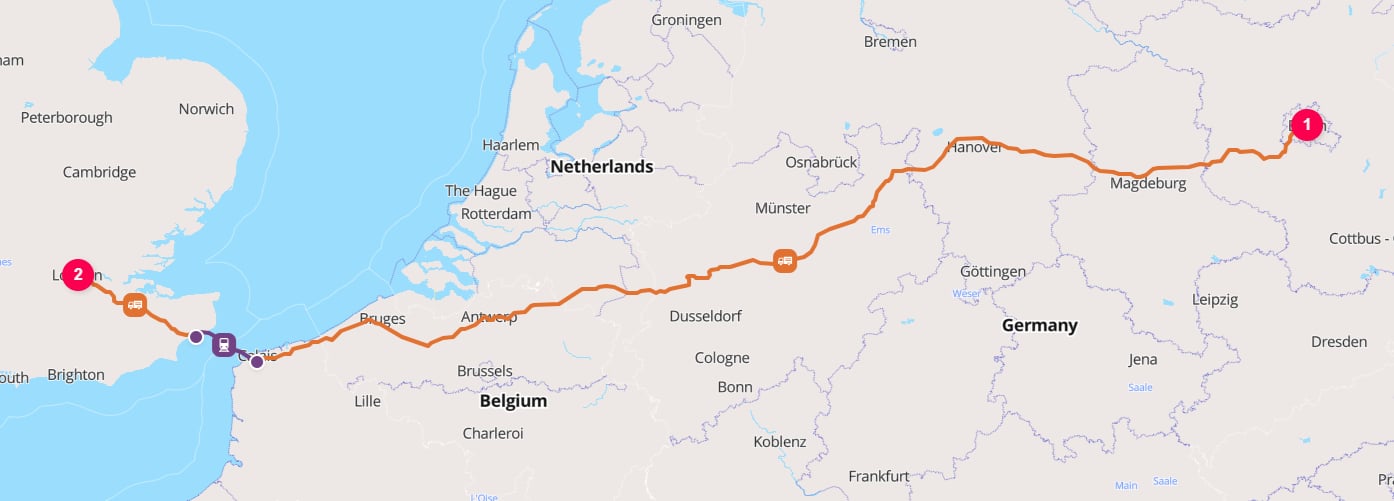

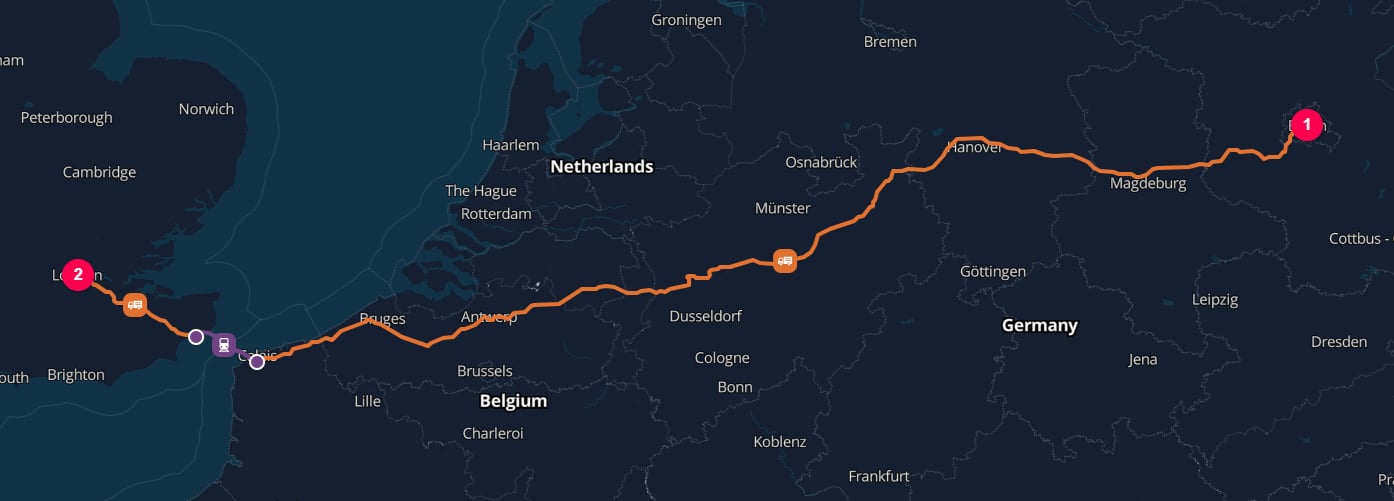

Road transport from the Reichstag Building in Berlin to the Palace of Westminster in London

1. Describe the cargo

Define what is being moved and how much it weighs.

2. Set the locations

Define where the shipment starts and finishes.

3. Build the chain

Describe the ordered journey between those locations.

4. Choose the operation

Select how the cargo moves on each leg of the journey.

This first calculation deliberately relies on TerraTwin defaults for the road vehicle, loading, empty running, energy type, and other modelling inputs. Once the request works, use the linked guides to replace those defaults with information you know.

Before you begin

You need:

A TerraTwin account
An API key from Manage API Keys
At least one available credit
A way to send an HTTP request; this tutorial uses curl for the final test

Authentication

Every request must include your API key in the x-api-key header.See API keys for creating, storing, rotating, and revoking keys.

Credits

Calculations consume credits according to the transport operations that TerraTwin processes.See Credits & usage for charging rules and examples.

Build the request

We will build the request body one section at a time. Each step shows the complete JSON as it stands at that point, so you can see how the pieces fit together.

Define the cargo

Every calculation starts with a cargo object. The only required cargo property is weight, which contains a positive value and a supported unit.Start with this request body:

{
  "cargo": {
    "weight": {
      "value": 1,
      "unit": "METRIC_TONNE"
    }
  }
}

The weight should include the goods and packaging supplied by the shipper. It should not include carrier equipment such as pallets or shipping containers added after handover.This minimal object is enough for a first calculation. For more representative defaults, you can also describe the cargo category, density characteristics, and climate-control requirements.See the Cargo guide for supported weight units, cargo categories, temperature control, density, and how cargo properties affect transport and hub defaults.

Define the origin and destination

Add top level origin and destination objects. Each location needs a type and enough information for TerraTwin to resolve it.For this tutorial, use structured address PLACE locations:

{
  "cargo": {
    "weight": {
      "value": 1,
      "unit": "METRIC_TONNE"
    }
  },
  "origin": {
    "type": "PLACE",
    "street": "Platz der Republik 1",
    "postcode": "11011",
    "city": "Berlin",
    "countryCode": "DE"
  },
  "destination": {
    "type": "PLACE",
    "postcode": "SW1A 0AA",
    "city": "London",
    "countryCode": "GB"
  }
}

PLACE is suitable for cities, addresses, postcodes, buildings, or coordinates. TerraTwin can also resolve purpose specific locations such as AIRPORT, RAIL_YARD, and HARBOR.See the Locations guide for coordinates, structured and freeform addresses, postcodes, IATA airport codes, UN/LOCODEs, location types, and matching behavior.

Create the transport chain

Add a transportChain array to describe how the cargo moves from the origin to the destination.A transport chain is ordered. Each element is either:

A transport operation, which moves the cargo on one requested leg
A HUB, which defines the boundary and handling point between legs

This shipment has only one leg, so the chain contains one road operation:

{
  "cargo": {
    "weight": {
      "value": 1,
      "unit": "METRIC_TONNE"
    }
  },
  "origin": {
    "type": "PLACE",
    "street": "Platz der Republik 1",
    "postcode": "11011",
    "city": "Berlin",
    "countryCode": "DE"
  },
  "destination": {
    "type": "PLACE",
    "postcode": "SW1A 0AA",
    "city": "London",
    "countryCode": "GB"
  },
  "transportChain": [
    {
      "type": "ROAD"
    }
  ]
}

See the Transport chains guide for single leg and multimodal chains, chain boundaries, and the difference between requested legs and the operations realized in the response.

Choose the transport operation

The type inside the transport chain element selects the operation for that leg. This tutorial uses ROAD, which lets TerraTwin choose a default vehicle and operating configuration.Use the guide for the operation you need when you are ready to add more detail:

ROAD

Trucks, vans, vehicle size and structure, loading, empty running, energy, consumption data, and route options.Read the Road transport guide

RAIL

Train selection, train weight, cargo mappings, traction energy, rail yards, and connector movements.Read the Rail transport guide

WATER

Vessels, capacity and size, containers, harbor selection, and navigation constraints.Read the Water transport guide

AIR

Aircraft, airports, belly freight and freighters, route restrictions, and stopovers.Read the Air transport guide

UNKNOWN

Use this only when the mode is genuinely unknown. TerraTwin tries fallback modes in order and selects the first one that succeeds.Read the Unknown transport guide

WEIGHTED_MODES

Use this when several known alternatives contribute to one leg. TerraTwin calculates every alternative and combines them using percentages that total 100.Read the Weighted modes transport guide

UNKNOWN and WEIGHTED_MODES solve different problems. UNKNOWN stops at the first feasible fallback mode; WEIGHTED_MODES calculates all supplied alternatives and returns their weighted combination.

Send the calculation

In an application, you would normally send this JSON using the HTTP client for your programming language or framework. For this tutorial, use curl to make the same request directly. Select the shell you use below. Each command sends the same HTTP request; only the quoting and line-continuation syntax differs between shells. Replace your-api-key with your TerraTwin API key, then run the command.

PowerShell 7.3+
Windows PowerShell 5.1
Command Prompt
Bash or zsh

curl.exe --silent --show-error --fail-with-body `
  --request POST `
  --url "https://api.terratwin.com/api/v1/transportation/emissions/calculate" `
  --header "Content-Type: application/json" `
  --header "x-api-key: your-api-key" `
  --data-raw '{
    "cargo": {
      "weight": {
        "value": 1,
        "unit": "METRIC_TONNE"
      }
    },
    "origin": {
      "type": "PLACE",
      "street": "Platz der Republik 1",
      "postcode": "11011",
      "city": "Berlin",
      "countryCode": "DE"
    },
    "destination": {
      "type": "PLACE",
      "postcode": "SW1A 0AA",
      "city": "London",
      "countryCode": "GB"
    },
    "transportChain": [
      {
        "type": "ROAD"
      }
    ]
  }'

curl.exe --% --silent --show-error --fail-with-body --request POST --url "https://api.terratwin.com/api/v1/transportation/emissions/calculate" --header "Content-Type: application/json" --header "x-api-key: your-api-key" --data-raw "{\"cargo\":{\"weight\":{\"value\":1,\"unit\":\"METRIC_TONNE\"}},\"origin\":{\"type\":\"PLACE\",\"street\":\"Platz der Republik 1\",\"postcode\":\"11011\",\"city\":\"Berlin\",\"countryCode\":\"DE\"},\"destination\":{\"type\":\"PLACE\",\"postcode\":\"SW1A 0AA\",\"city\":\"London\",\"countryCode\":\"GB\"},\"transportChain\":[{\"type\":\"ROAD\"}]}"

curl.exe --silent --show-error --fail-with-body ^
  --request POST ^
  --url "https://api.terratwin.com/api/v1/transportation/emissions/calculate" ^
  --header "Content-Type: application/json" ^
  --header "x-api-key: your-api-key" ^
  --data-raw "{\"cargo\":{\"weight\":{\"value\":1,\"unit\":\"METRIC_TONNE\"}},\"origin\":{\"type\":\"PLACE\",\"street\":\"Platz der Republik 1\",\"postcode\":\"11011\",\"city\":\"Berlin\",\"countryCode\":\"DE\"},\"destination\":{\"type\":\"PLACE\",\"postcode\":\"SW1A 0AA\",\"city\":\"London\",\"countryCode\":\"GB\"},\"transportChain\":[{\"type\":\"ROAD\"}]}"

curl --silent --show-error --fail-with-body \
  --request POST \
  --url 'https://api.terratwin.com/api/v1/transportation/emissions/calculate' \
  --header 'Content-Type: application/json' \
  --header 'x-api-key: your-api-key' \
  --data-raw '{
    "cargo": {
      "weight": {
        "value": 1,
        "unit": "METRIC_TONNE"
      }
    },
    "origin": {
      "type": "PLACE",
      "street": "Platz der Republik 1",
      "postcode": "11011",
      "city": "Berlin",
      "countryCode": "DE"
    },
    "destination": {
      "type": "PLACE",
      "postcode": "SW1A 0AA",
      "city": "London",
      "countryCode": "GB"
    },
    "transportChain": [
      {
        "type": "ROAD"
      }
    ]
  }'

Treat your API key as a secret. The inline value is convenient for this first test, but do not commit a real key to source control or share it in logs, screenshots, or support messages.

A successful request returns HTTP 200 and a JSON calculation result.

Read the result

Start with these top-level response properties:

Property	What it tells you
`totalEmissions.co2eGrams`	The total greenhouse gas emissions for transport operations and logistics hubs across the complete chain.
`transportEmissions.wtwCo2eGrams`	Well-to-wheel emissions from the transport operations.
`hubEmissions.co2eGrams`	Greenhouse gas emissions from logistics hubs included in the calculation.
`activityDistanceKm`	Total modelled distance across the transport operations.
`activityTonneKm`	Total transport activity in tonne-kilometres.
`transportChain`	The realized operation results, including defaults and any connector or hub operations TerraTwin added.
`creditCost`	Credits consumed by the calculation.

One requested transport-chain element can produce several realized elements in the response. For example, an AIR, RAIL, or WATER leg between two general places can include first-mile road, a departure hub, the primary mode, an arrival hub, and last-mile road.

For every request field, response schema, enum, endpoint, and error model, see the Calculation API reference.

Extend the request to multiple legs

A chain can contain several transport operations, but each pair of requested operations must be separated by a HUB that defines where the first leg ends and the next begins. For example, this chain moves cargo by water from the port of London Gateway [GBSHV] to the port of Antwerp [BEANR], handles it at the Antwerp maritime terminal, and then moves it by road to Frankfurt:

{
  "cargo": {
    "weight": {
      "value": 1,
      "unit": "METRIC_TONNE"
    }
  },
  "origin": {
    "type": "HARBOR",
    "unLoCode": "GBSHV"
  },
  "destination": {
    "type": "PLACE",
    "address": "Römerberg 27, 60311 Frankfurt am Main",
    "countryCode": "DE"
  },
  "transportChain": [
    {
      "type": "WATER"
    }, {
      "type": "HUB",
      "hubType": "MARITIME_TERMINAL",
      "location": {
        "type": "HARBOR",
        "unLoCode": "BEANR"
      }
    }, {
      "type": "ROAD"
    }
  ]
}

The hub’s location is both the destination boundary for the WATER leg and the origin boundary for the ROAD leg. The hub can also contribute cargo-handling emissions.

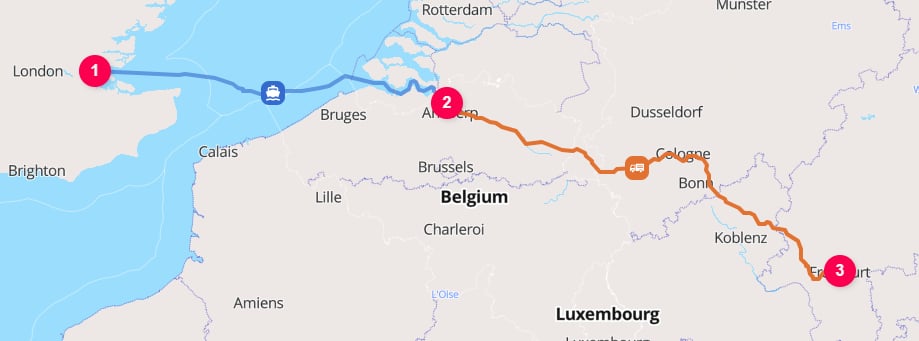

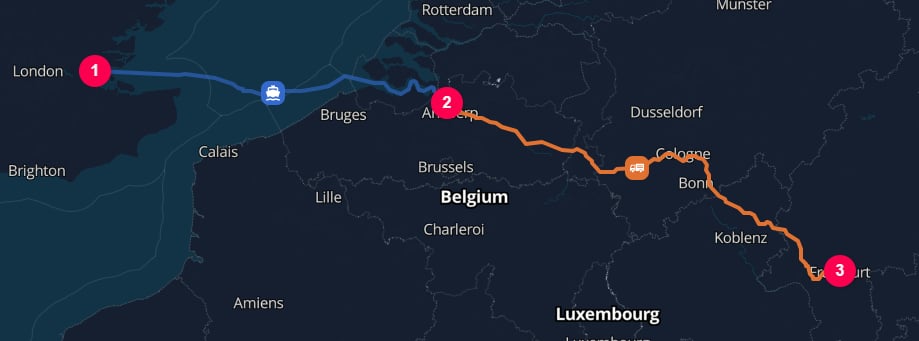

Sea transport from London Gateway to the Port of Antwerp, then by road to Frankfurt’s Römer

See the Hubs guide for explicit and automatically inserted hubs, hub types, endpoint hubs, transition defaults, and controlling hub insertion.

A hub is not a transport movement. Do not put vehicle, distance, or energy properties on a HUB; configure those properties on the surrounding transport operations.

Guide map

Use these guides as you replace defaults and model more complex shipments:

Access and usage

Shipment structure

Transport operations

Complete schema

Use the Calculation API reference for exact field constraints, allowed values, complete response objects, error codes, and result-storage endpoints.

Troubleshooting

Error responses include title, status, code, details, and recommendation properties. Start with details, which normally identifies the field, location, or operation that failed, and then follow recommendation.

Status	Likely cause	What to check
`400`	The JSON or request shape is invalid.	Check commas, braces, required properties, supported units, and enum spelling in the request body. Confirm `Content-Type: application/json`.
`401`	The API key is missing, invalid, or revoked.	Replace `your-api-key` with an active key and confirm the header name is exactly `x-api-key`. Generate a new key if necessary.
`403`	The account does not have enough credits.	Check the account credit balance and review how the requested operations are charged.
`422`	A location could not be resolved, or an operation could not be routed or calculated.	Add more precise location data, check codes and country codes, and confirm the selected mode is feasible between the leg boundaries.
`429`	The account exceeded the rate limit.	Keep request volume at or below 5 requests per second and retry with backoff.
`500` or `503`	A server or dependent service could not complete the calculation.	Retry after a delay. Keep the full error response if the problem continues.

For field level validation rules and the complete error code list, use the Calculation API reference.
